Guilin Microtech Optical Instrument Co., Ltd. (MTO)

● Tool-Setting Inclined Eyetube Microscope
Special designed for precision tool-setting on equipment

● Double Magnification Video Micro Series
Can realize double Field of video & double magnification while observing a objects
● Special Fixed Magnification Video Micro Series

Over 200 model,for more information.
Optical specifications

MTD30-90/42°	MTD(08-20)C-80	MTD20C-70

Tool-Setting Inclined Eyetube Microscope:

Model	Objective	WD(mm)	FOV(mm)	NA	Resolution(μm)
MTD10-200/42°	1.0X	200	Φ23	0.037	8.9

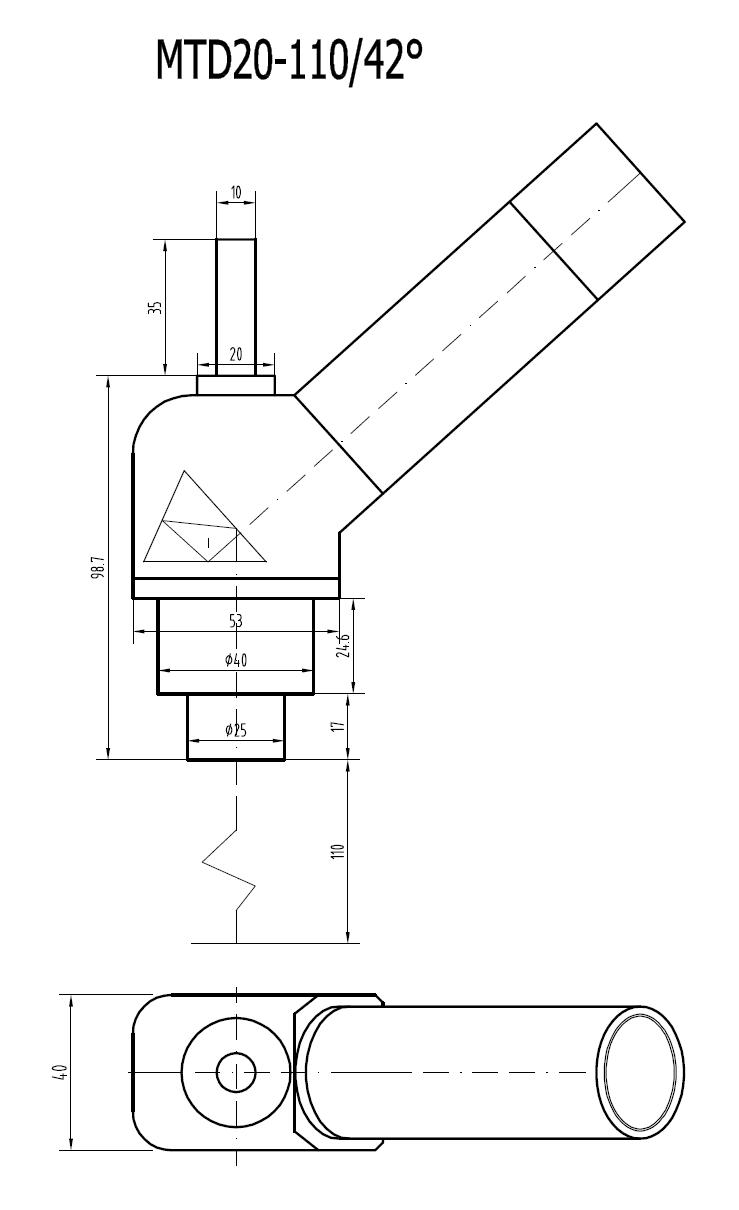

MTD20-110/42°	2.0x	110	Φ11.5	0.062	5.4
MTD30-90/42°	3.0x	90	Φ7.7	0.075	4.5

Double Magnification Video Micro Series:

Model	Objective	WD(mm)	Total Mag.		FOV(mm)	NA	DOF(μm)	Resolution(μm)
Model	Objective	WD(mm)	1/3"、9"	1/3"、17"	FOV(mm)	NA	DOF(μm)	Resolution(μm)
MTD(08-20)C-80	0.8X～2.0X	80	32X～80X	48X～120X	6X4.5～2.4X1.8	0.061～0.062	800～320	5.5～5.4
MTD(07-07)-100	0.7X～0.7X	100	28X	42X	6.9X5.1 (center distance 7.5mm)	0.051	1.12	6.58
MTD(20-20)C-110	2X～2X	110	80X	120X	2.4X1.8 (center distance 7mm)	0.045	445	7.5

Special Fixed Magnification Video Micro Series:

Model	Objective magnification	Working distance (mm)	Total magnification		Field of video (mm)	NA	Depth of field	Resolution
Model	Objective magnification	Working distance (mm)	1/3"、9"	1/3"、17"	Field of video (mm)	NA	Depth of field	Resolution
MTD01-156	0.1X	155	4X	7.2X	48X36	0.008	50mm	42μm
MTD02-140	0.2X	140	8X	14.4X	24X18	0.015	13.5mm	23μm
MTD03C-168SA	0.3X	168	12X	21.6X	16X12	0.026	5.1mm	12.9μm
MTD3.5-198	0.35X	198	14X	25.2X	13.7X11.3	0.03	3.8mm	11.2μm
MTD04-150	0.4X	150	16X	28.8X	12X9	0.042	2.4mm	8.2μm
MTD05C-60	0.5X	60	20X	36X	9.6X7.2	0.09	888.9μm	3.7μm
MTD06C-170	0.6X	170	24X	43.2X	8X6	0.025	2.67mm	13.4μm
MTD07-75RA	0.7X	75	28X	50.4X	6.9X5.1	0.052	1.1mm	6.5μm
MTD08C-150	0.8X	150	32X	57.6X	6X4.5	0.042	1.19mm	8μm
MTD10C-98RA	1.0X	98	40X	72X	4.8X3.6	0.047	851.1μm	7.1μm
MTD12.5C-150S	1.25X	150	50X	90X	3.8X2.9	0.041	780μm	8μm
MTD15C-250	1.5X	250	60X	108X	3.2X2.4	0.035	761.9μm	9.6μm
MTD17-93RA	1.7X	93	68X	122.4X	2.8X2.1	0.044	534.8μm	7.63μm
MTD18C-110	1.8X	110	72X	129.6X	2.7X2	0.057	389.9μm	5.9μm
MTD20C-185SA	2.0X	185	80X	144X	2.4X1.8	0.037	540.5μm	9.1μm
MTD25C-70A	2.5X	70	100X	180X	1.9X1.4	0.07	185μm	3.8μm
MTD30-99（帶微調(diào)）	3.0X	99	120X	216X	1.6X1.2	0.072	185.2μm	4.66μm
MTD35C-65	3.5X	56	140X	252X	1.4X1.0	0.094	120μm	3.6μm
MTD40C-135	4.0X	135	160X	288X	1.2X0.9	0.064	156.3μm	5.2μm
MTD50-32	5.0X	32	200X	360X	1.0X0.7	0.25	32μm	1.3μm
MTD80C-80	8.0X	80	320X	576X	0.6X0.45	0.102	49μm	3.3μm
