Guilin Microtech Optical Instrument Co., Ltd. (MTO)

MTS series includes MTS100 & MTS300

◎ MTS100 includes MTS112, MTS113, MTS124

◆ Unique optical design, extra long working distance, large depth of fields

◆ High eye-position and extra wide-field eyepieces.

◆ Horizontal axial drive control knobs, easy to operation

◆ Extensively used in mineral specimen researching,precision components assembling, industry productline and weeny objects inspection

◎ MTS300 includes MTS312, MTS313, MTS324

◆ Change magnification by the turret body, orientation precision, excellent parfocal performance

◆ High eye point and extra wide-field eyepieces

◆ Especially be long time used in industry product line

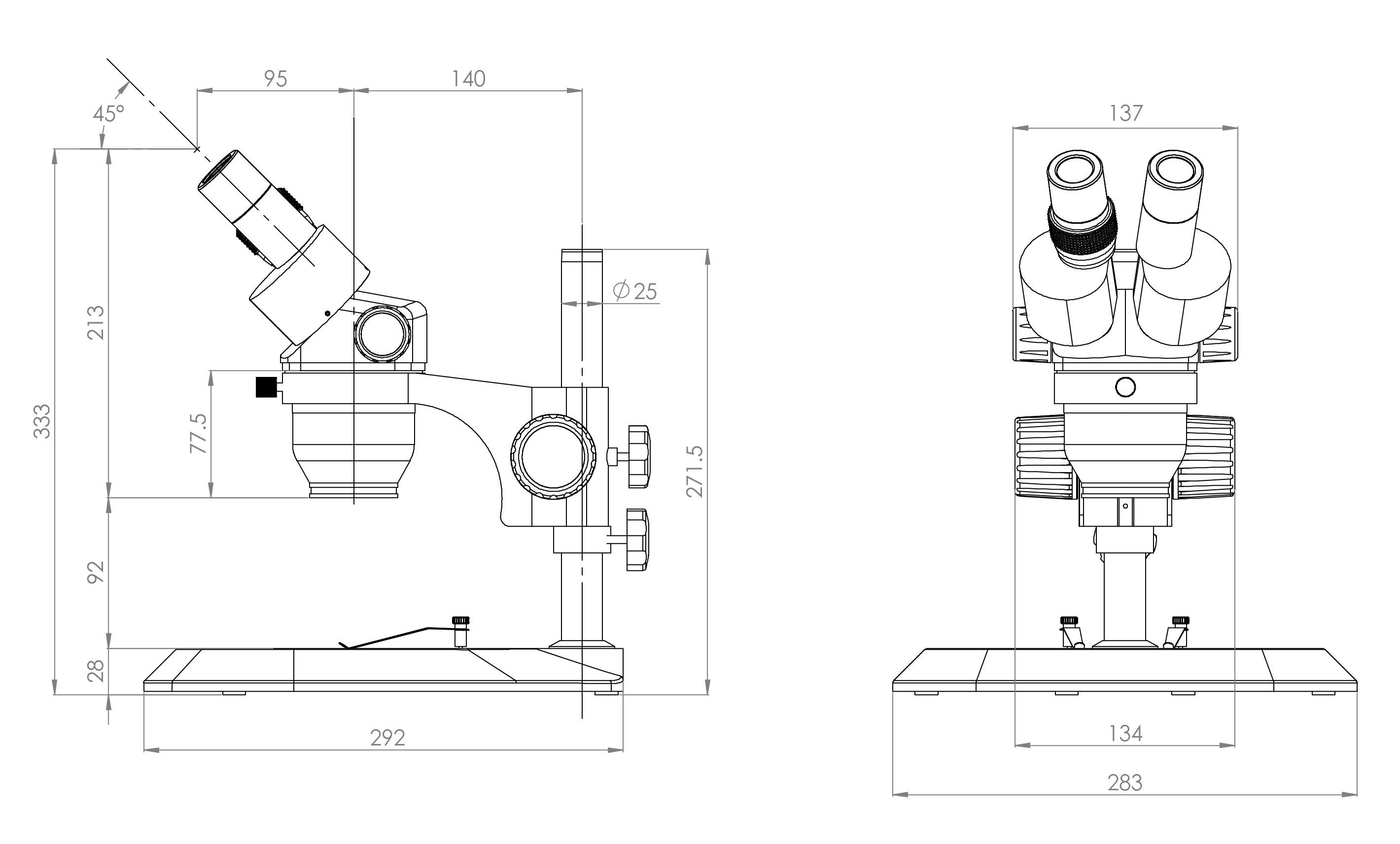

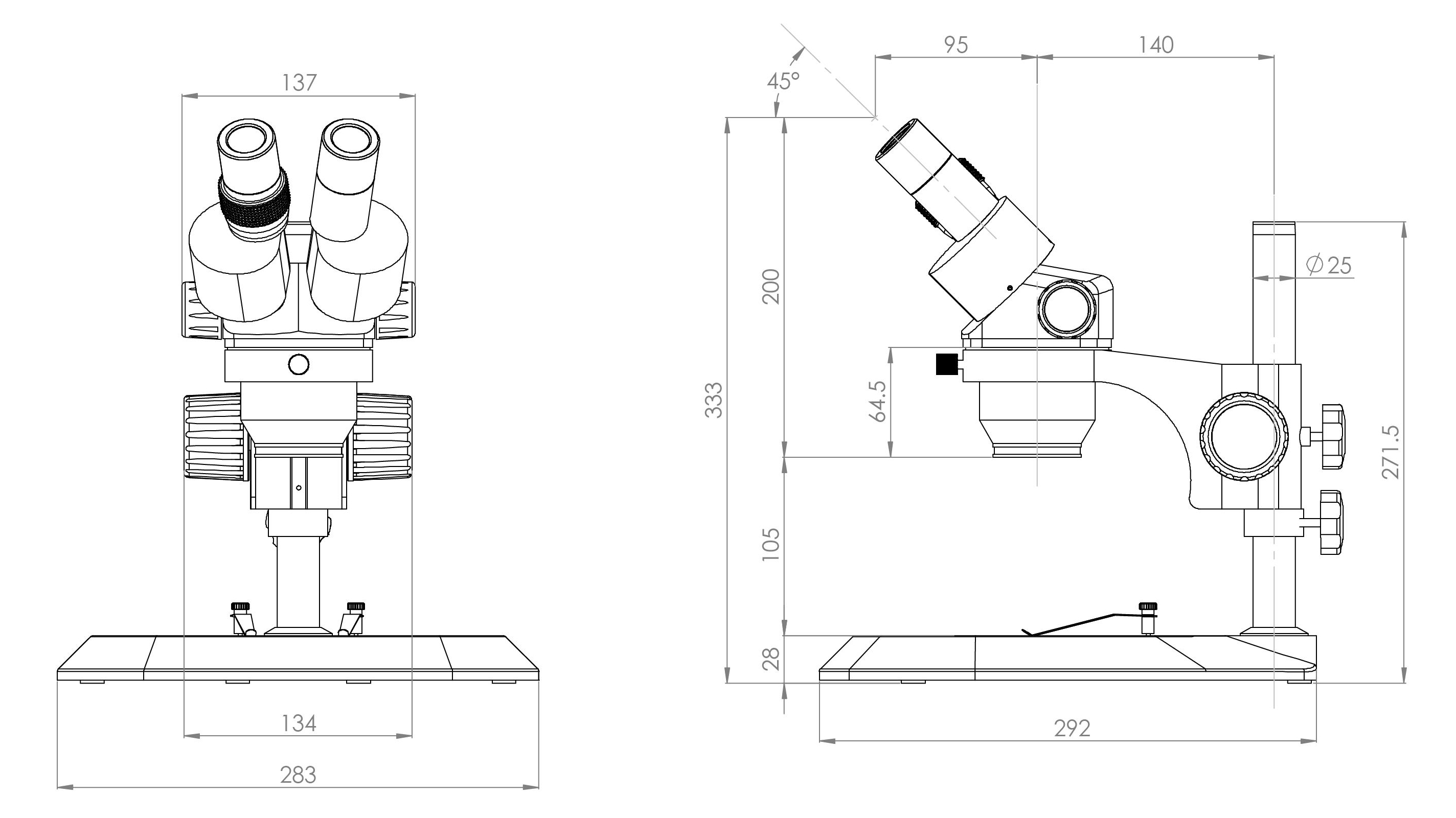

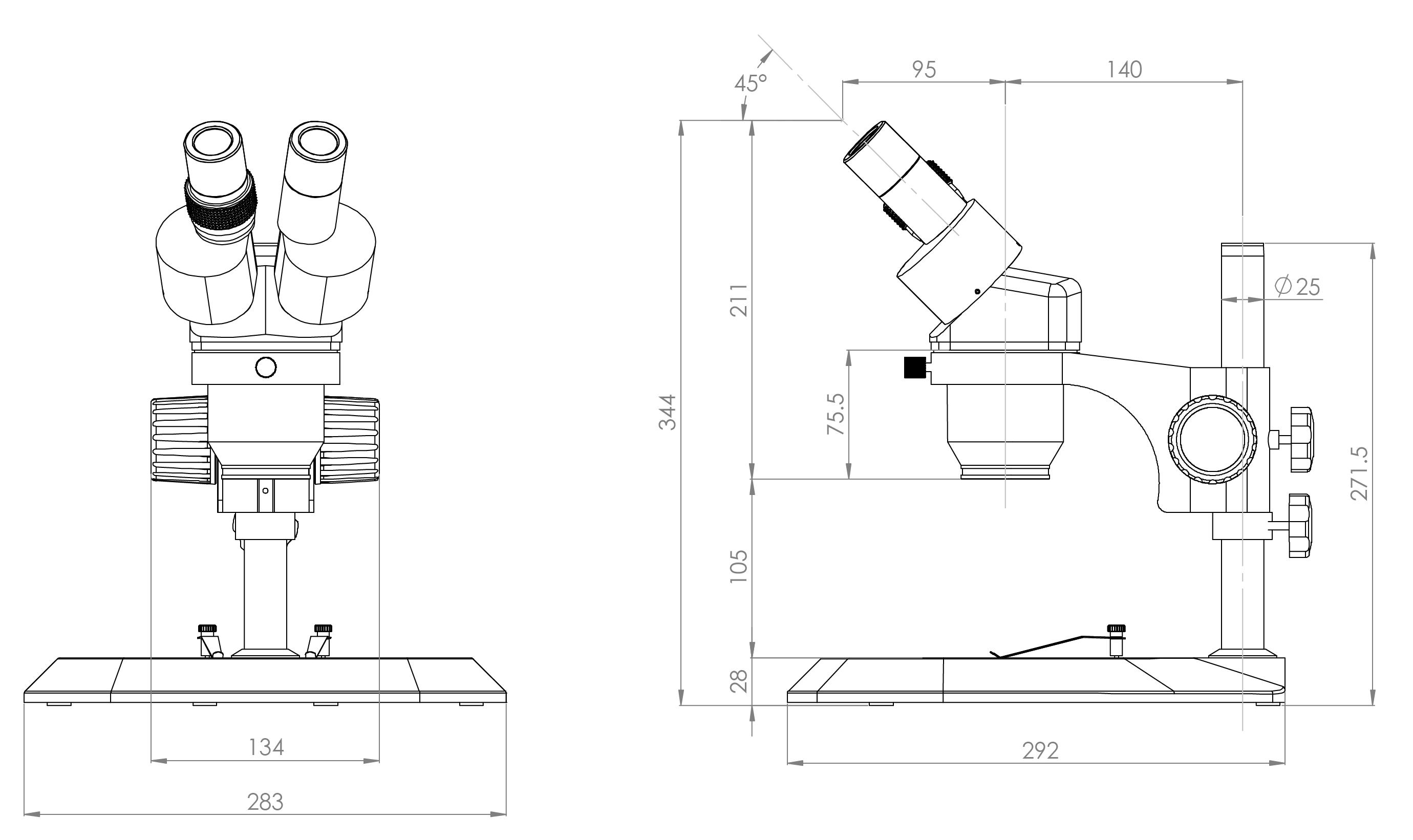

MTS112+SD1	MTS312+SD1

Zoom driver	MTS100 Series change magnification by knobs MTS300 Series change magnification by the turret
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 45°
WD	105mm
Focus range	50mm（track stand: 100mm）
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
The holder and the head matching dimension	Φ76mm
Distance between the center of the pole and the center of the holder	140mm
Diameter of the pole	Φ25mm
Diameter of the center working stage	Φ95mm
Illuminators	Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.

Model	Objective	Specification of different eyepiece
		SWH10X		SWF15X		SWF20X		SWF30X
		Total Mag.	FOV(mm)	Total Mag.	FOV(mm)	Total Mag.	FOV(mm)	Total Mag.	FOV(mm)
MTS112 MTS312	1X	10X	Φ23	15X	Φ17	20X	Φ14	30X	Φ9
MTS112 MTS312	2X	20X	Φ11.5	30X	Φ8.5	40X	Φ7	60X	Φ4.5
MTS113 MTS313	1X	10X	Φ23	15X	Φ17	20X	Φ14	30X	Φ9
MTS113 MTS313	3X	30X	Φ7.67	45X	Φ5.67	60X	Φ4.67	90X	Φ3
MTS124 MTS324	2X	20X	Φ11.5	30X	Φ8.5	40X	Φ7	60X	Φ4.5
MTS124 MTS324	4X	40X	Φ5.75	60X	Φ4.25	80X	Φ3.5	120X	Φ2.25

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	SWH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	SWH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
