Guilin Microtech Optical Instrument Co., Ltd. (MTO)

◆ Includes MZS1065(binocular) and MZS1065T(trinocular).

◆ Non-flash in focus course while from high to low magnification

◆ Large depth of view, width of visual fields, super long working distance, high cost effective

◆ Extensively applied in field of modern biology research, semiconductor and other science and technology industry.

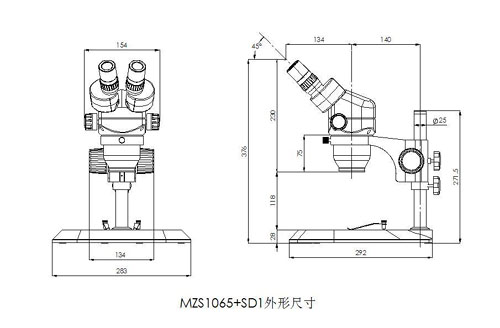

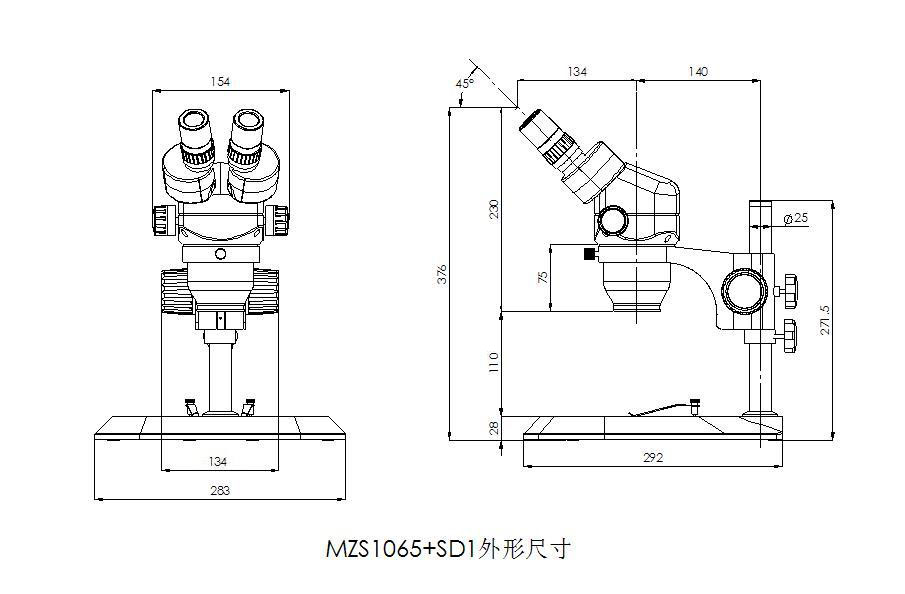

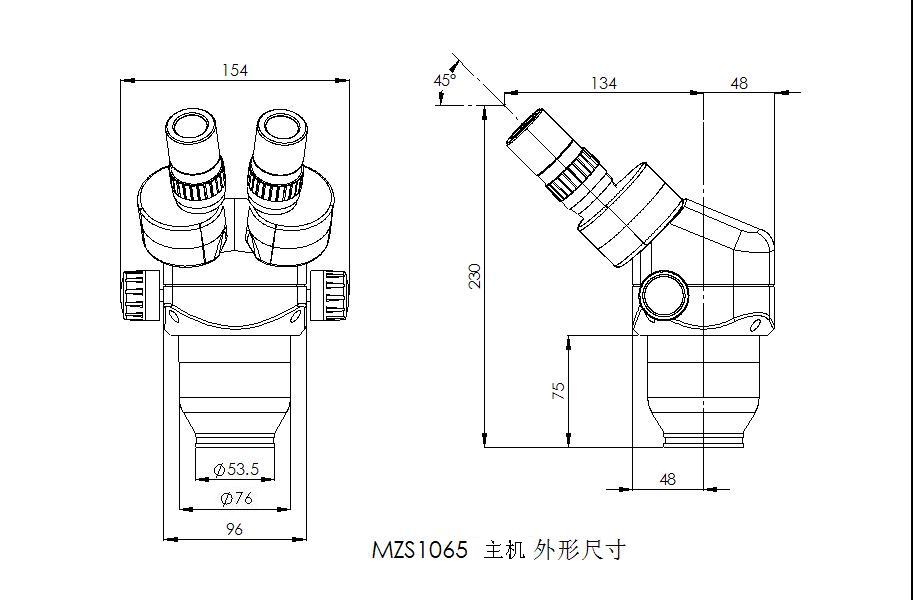

MZS1065	MZS1065+SD1

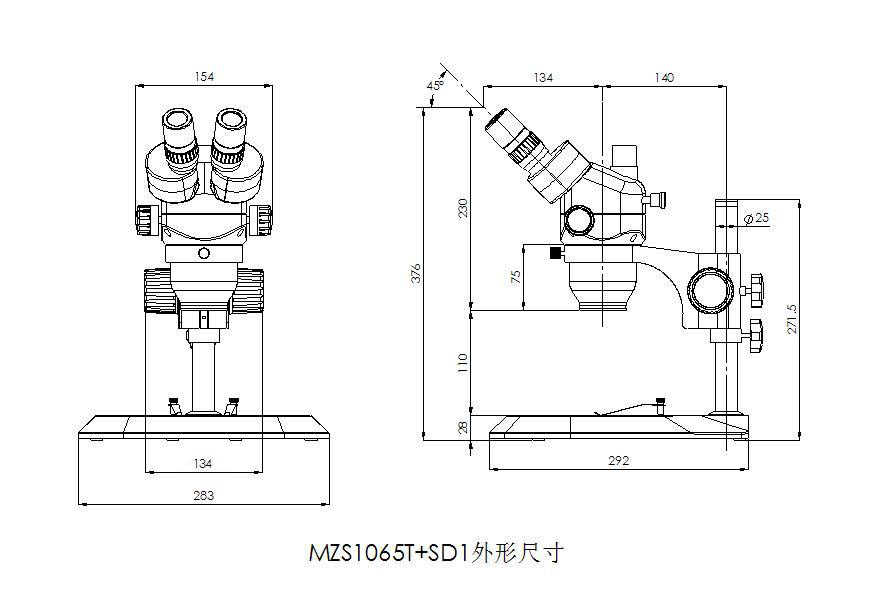

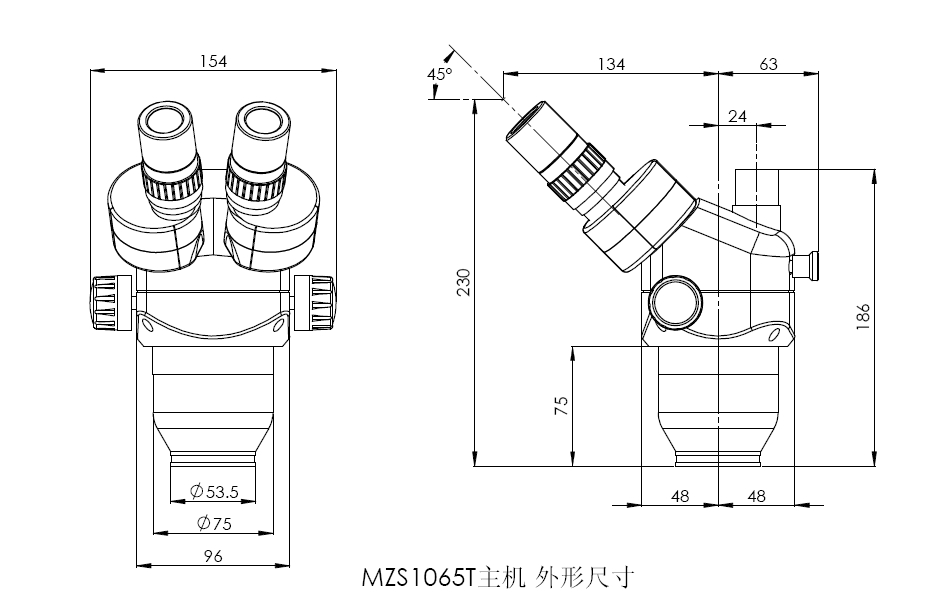

MZS1065T	MZS1065T+SD1

Magnification	Total magnification(standard outfits): 10X~65X, Extend total magnification： 390X
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 45°
WD	110mm
Interpupillary distance adjustment range(SWH10X)	52mm~76mm
Diopter adjustment range	±6 Diopter
Focus adjustment range	50mm（Using square post is 100mm）
Support and main body matched dimension	Φ76mm
Post’ center to Support’ center dimension	140mm
Round post diameter	Φ25mm
Center stage diameter	Φ95mm
Trinocular， Binocular eyetubes	Binocular, Trinocular eyetubes inclined 45°and main body can be rotated 360°
Illuminators	The down illuminator is transmitted illumination of fluorescent lamp(5W),the up illuminator is reflected illumination of halogen lamp(6V、10W).

Eyepiece	Item	Main body	Specification of different auxiliary objective
Eyepiece	Item	Main body	0.37X	0.5X	0.7X	1.5X	2X
10X	Total Mag.	10X~65X	3.7X~24.1X	5X~32.5X	7X~45.5X	15X~97.5X	20X~130X
10X	FOV(mm)	Φ23~Φ3.5	Φ62.2~Φ9.6	Φ46~Φ7.1	Φ32.9~Φ5.1	Φ15.3~Φ2.4	Φ11.5~Φ1.8
15X	Total Mag.	15X~97.5X	5.55X~36.1X	7.5X~48.8X	10.5X~68.3X	22.5X~146.3X	30X~195X
15X	FOV(mm)	Φ17~Φ2.6	Φ45.9~Φ7.1	Φ34~Φ5.2	Φ24.3~Φ3.7	Φ11.3~Φ1.7	Φ8.5~Φ1.3
20X	Total Mag.	20X~130X	7.4X~48.1X	10X~65X	14X~91X	30X~195X	40X~260X
20X	FOV(mm)	Φ14~Φ2.2	Φ37.8~Φ5.8	Φ28~Φ4.3	Φ20~Φ3.1	Φ9.3~Φ1.4	Φ7~Φ1.1
30X	Total Mag.	30X~195X	11.1X~72.2X	15X~97.5X	21X~136.5X	45X~292.5X	60X~390X
30X	FOV(mm)	Φ9~Φ1.4	Φ24.3~Φ3.7	Φ18~Φ2.8	Φ12.9~Φ2	Φ6~Φ0.9	Φ4.5~Φ0.7
WD(mm)		110	275	195	145	58	35

NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	SWH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	SWH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Auxiliary objectives	W0.37, W0.5, W0.7, W1.5, W2.0
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
