Guilin Microtech Optical Instrument Co., Ltd. (MTO)

◆ MZDA1490BC (binocular) and MZDA1490BTC (trinocular).

◆ Original imaging and illumination optical system design, for higher contrast and larger depth of field.

◆ Video display and visual observation simultaneously, the visual images erecting by eyepieces observation

◆ Applied for observation & inspection on a variety of objects. Specially suitable to inspect LCD , planar printed and other plane objects with high reflectivity & low reflectivity simultaneously.

Main advantages: High contract and high definition, It can observe almost objects, such as LCD, chips, wafer and etc.. Especially fit for the high level research


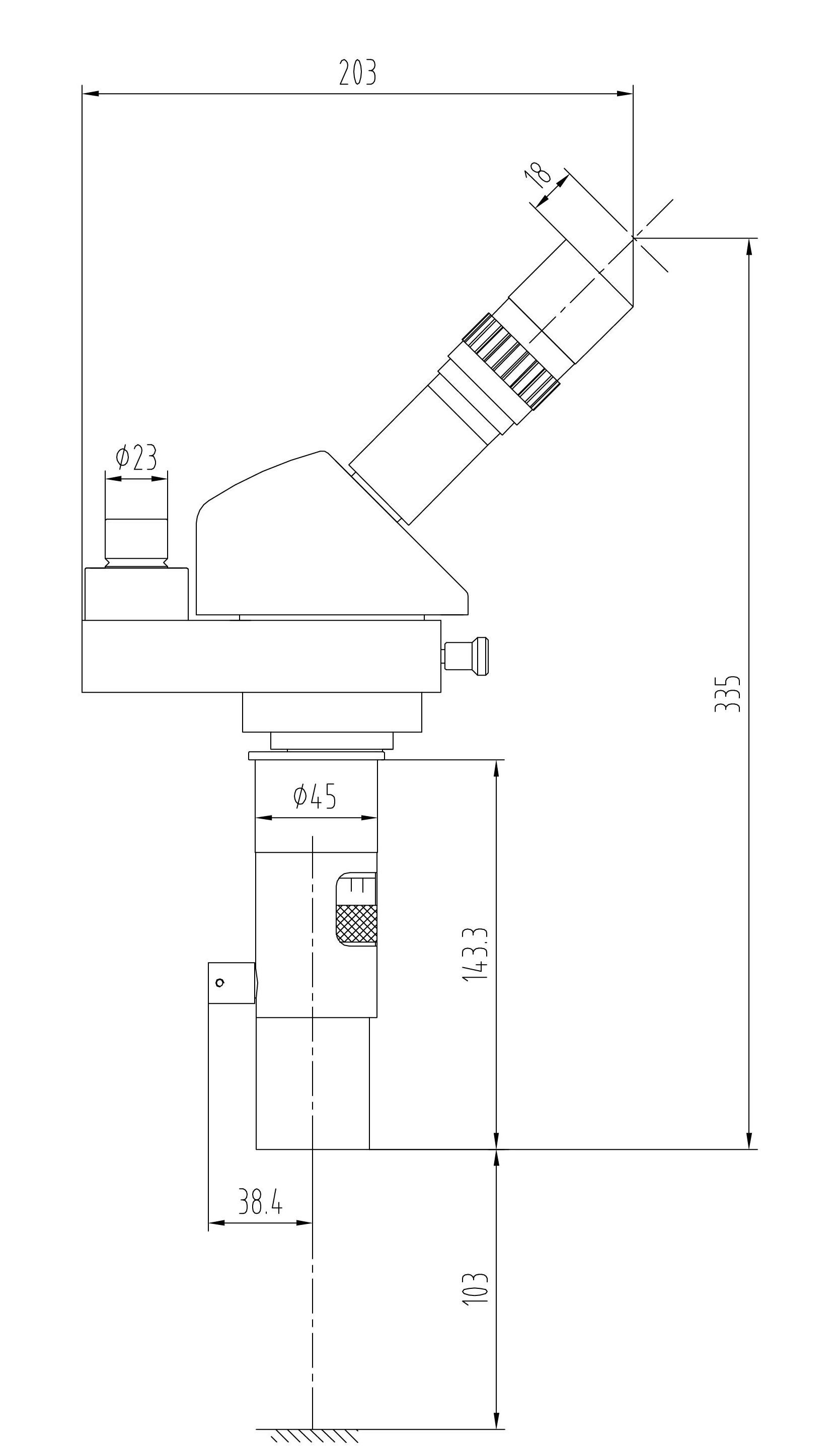

MZDA1490BC+SD11J-D	MZDA1490BC

MZDA1490BTC +SD11J-D+1X CCD	MZDA1490BTC

Eyepieces observing Magnification	Standard eyepieces total magnification: 14X~90X. With 2X auxiliary objectives and 30X eyepieces, the maximal magnification is 540X.
Zoom range	1.4X~9X
WD	103mm
Eyetubes	Binocular eyetubes inclined 45°
Illuminators	Long life, various color, high brightness LED coaxial illumination
Interpupillary distance adjustment range	52mm~76mm
Diopter adjustment range	±6 Diopter
Focus range	50mm
The holder and the head matching dimension	Φ45mm

●Binocular eyepieces observation

Eyepieces	Items	Main body	0.7X auxiliary objective	2X auxiliary objective
10X/Φ22	Total Mag.	14X~90X	9.8X~63X	28X~180X
10X/Φ22	FOV(mm)	Φ15.7~Φ2.44	Φ22.4~Φ3.5	Φ7.86~Φ1.22
15X/Φ17	Total Mag.	21X~135X	14.7X~94.5X	42X~270X
15X/Φ17	FOV(mm)	Φ12.14~Φ1.89	Φ17.35~Φ2.7	Φ6.07~Φ0.94
20X/Φ14	Total Mag.	28X~180X	19.6X~126X	56X~360X
20X/Φ14	FOV(mm)	Φ10~Φ1.56	Φ14.29~Φ2.22	Φ5~Φ0.78
30X/Φ9	Total Mag.	42X~270X	29.4X~189X	84X~540X
30X/Φ9	FOV(mm)	Φ6.43~Φ1	Φ9.18~Φ1.43	Φ3.21~Φ0.5
WD(mm)		103	145	35
Zoom body Magnification range :1.4X～9X

●Video Display

Auxiliary Objective	Items	CCD adapter
		0.5X	1X
1X Main body	Total Mag.	0.7X~4.5X	1.4X~9X
	FOV(mm)	5.14X6.86~0.8X1.07	2.57X3.43~0.4X0.53
	WD(mm)	103
0.7X	Total Mag.	0.49X~3.15X	0.98X~6.3X
	FOV(mm)	7.35X9.8~1.14X1.52	3.67X4.9~0.57X0.76
	WD(mm)	145
2X	Total Mag.	1.4X~9X	2.8X~18X
	FOV(mm)	2.57X3.43~0.4X0.53	1.29X1.71~0.2X0.27
	WD(mm)	35
Zoom body magnification range 1.4X～9X

	Stands	SD1-D~SD18-D
	Eyepieces	10X, 15X, 20X, 30X
	Divisional eyepieces	10X, 15X, 20X
	Stage micrometer	CM0.1X, CM0.1XY, CMS0.2

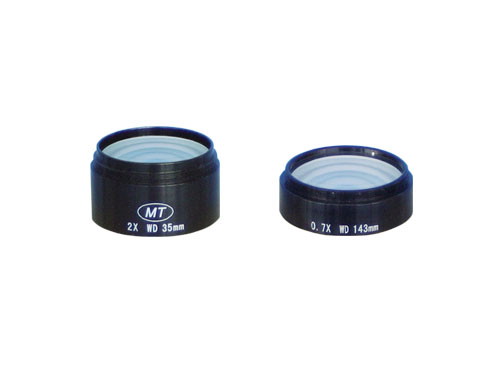

	Auxiliary objectives	DA-W0.7, DA-W2.0
	CCD adapters	C0.5、C1.0
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
